제품 상세 정보:
결제 및 배송 조건:
|
| 모델: | KJ-625 | 메인프레임 치수: | 360mm(너비) * 550mm * 450mm(세로)(높이) |
|---|---|---|---|
| 작업 중인 메사 크기:: | 120mm * 150mm | 가장 큰 표본 크기: | 10인치 |
| 렌즈 각도: | 똑바로 | 발광물: | 조정 가능한 단일 파장 산업용 등급 LED 조명 |
| 힘: | 1&,AC220V,5A | 보증: | 12개월 |
| 접촉 각도 측정 범위: | 0-180' | 접촉각 측정 정확도: | ±0.10° |

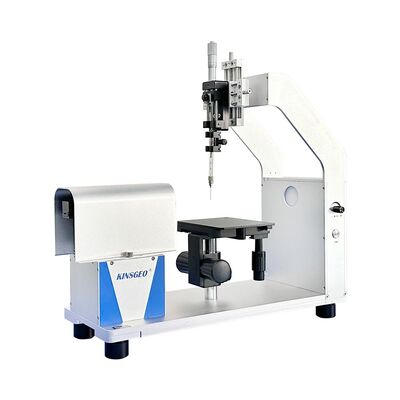

The KJ-625 optical contact angle tester is a professional device used for measuring the wetting properties of solid surfaces. It is easy to operate, quick to test, and has high sensitivity. Through contact angle measurement, it can indirectly obtain data on the surface energy of solids and the surface tension of liquids. It is widely used in the surface performance testing and research of multiple industries, providing precise and reliable technical support for product quality control and material development, and helping to enhance product performance and competitiveness.
| Contact angle measurement range | 0-180° |
| Contact angle measurement accuracy | ±0.10° |
| High-precision droplet dispensing system | Differential head + blue-core syringe; Droplet dispensing accuracy 0.5 μl |
| Mainframe dimensions | 360mm (width) × 550mm (length) × 450mm (height) |
| Mainframe net weight | 11KG |
| Workbench dimensions | 120mm×150mm |
| Workbench movement range | Up and down 50mm; Left and right 50mm; Front and back 30mm |
| Maximum sample table size | 10 inches |
| Injection head movement range | Up and down 100mm; Left and right 100mm |
| Industrial lens movement range | Front and back 180mm (fine-tuning 3mm) |
| Industrial lens | 0.7X - 4.5X high-definition continuous variable magnification microscope |
| CCD | Industrial-grade chip; 20 frames per second |
| Lens angle | Horizontal view |
| Light source | Adjustable single-wavelength industrial-grade LED |
| Power supply and power | 220V / 60HZ |
