제품 상세 정보:
결제 및 배송 조건:
|
| 재료: | 304# 스테인리스 스틸 | 온도 범위: | RT+20C~70C |
|---|---|---|---|
| 온도 균일 성: | ±1℃ | 온도 변동: | ±0.5℃ |
| 온도 제어: | PID SSR 제어 | 습도 범위: | ≥90%RH |
| 램프의 수명: | 1600시간 | 효과적 방사 영역: | 900×210mm |
| 표준 표본 크기: | 75×290mm/24개 | 힘: | 1상, 220V/50Hz /±10% 5KW |
| 강조하다: | 304# Stainless Steel UV Test Chamber,RT+20℃~70℃ UV Accelerated Weathering Tester,±1℃ Uniformity UV Aging Chamber |
||

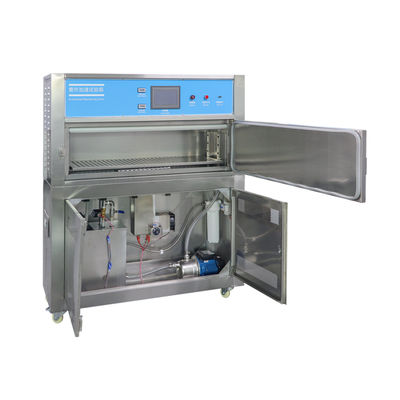

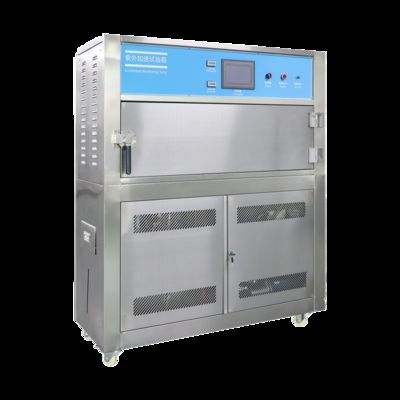

UV Testing Equipment for effective irradiation area UV accelerate testing machine and environmental control chamber.
ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020
UV accelerated weathering test chamber simulates damaging effects of long-term outdoor exposure to sunlight, heat, and moisture on materials and coatings. It exposes specimens to varying conditions of weathering - ultraviolet radiation, moisture, and heat - to test performance and improve quality.
| Parameter | Specification |
|---|---|
| Model | KJ-9029 |
| Test chamber size (L×W×H) | 1170×450×500(mm) |
| Outside dimension (L×W×H) | 1350×540×1480(mm) |
| Chamber materials | 304# stainless steel |
| Temperature range | RT+20℃~70℃ |
| Temperature uniformity | ±1℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature control | PID SSR control |
| Humidity range | ≥90%RH |
| Controller | TEMI 880 programmable controller, touch screen, LCD display |
| Control mode | Balance temperature humidity control (BTHC) |
| Communication function | Computer control via TEMI control software through RS-232 port |
| Test cycle setting | Programmable illumination, condensation and water spray test cycles |
| Distance from specimen to lamp | 50±3mm (adjustable) |
| Center distance between the lamps | 70mm |
| Lamp power & length | 40W/Piece, 1200mm/Piece |
| Lamps amount | 8 pieces of UVA-340 or UVB-313 imported lamps |
| Lifetime of lamp | 1600Hours |
| Irradiance | 1.0W/m², adjustable directly on TEMI 880 touch screen controller |
| Wavelength of ultraviolet light | UVA is 315-400nm and UVB 280-315nm |
| Effective irradiation area | 900mm×210mm |
| Irradiation black panel temperature | 50℃~70℃ |
| Standard specimen size | 75×290mm/24 pieces |
| Water depth for water channel | 25mm, automatically control |
| Water consumption | 8L/day, tap water or distilled water |
| Testing time | 0～999H, adjustable |
| Power | 1 phase, 220V/50Hz /±10% 5KW |
| Protection | Overload short circuit protection, over temperature protection, water lacking protection |
1. Please specify whether 8 UVA or 8 UVB lamps are needed when ordering.
2. UVA-340 lamps simulate natural outdoor exposure well. UVB-313 lamps perform accelerated testing more quickly via stronger irradiation.
The warranty period for the machine is one year under normal use since the delivery date.
Beneficiary Name: KEJIAN INDUSTRIAL(HONG KONG) CO.,LTD
Beneficiary Bank: HONGKONG AND SHANGHAI BANKING CORPORATION LIMITED,THE
Bank Address:1 Queen's Road Central,Hong Kong
SWIFT:HSBCHKHHHKH
Beneficiary's A/C: 801217209838
A: 12 months product warranty with lifetime services. Free non-consumable components provided for performance failures within 12 months caused by non-human damage.
A: Yes, our engineers can record specialized instructional videos upon request.
A: We are a manufacturer with 18 years in test instruments and 9 years exporting experience. We support OEM/ODM and welcome factory visits.
A: Typically 25 days, or 3 days if items are in stock. Lead times vary by product and quantity.
A: 12 months warranty with free controller repairs (even non-original). After warranty, our team provides ongoing technical support.
A: All instruments undergo 100% quality testing. We provide video training for installation/operation and can send engineers abroad for training/repairs.
