제품 상세 정보:
결제 및 배송 조건:
|
| 힘: | AC220V 50Hz | 용법: | 만능시험기기, 인장 시험기, 충돌 인장 시험기 |
|---|---|---|---|
| 무게: | 135kg | 제품 이름: | 이중 열 |
| 전원 공급 장치: | 220V 50Hz | 애플리케이션: | 보편적 인 테스터 |
| 기준: | ASTM E8/A370/ISO 75001 | 모터: | 파나소닉 서보 모터 |
| 보증: | 1 년 | 정확성: | +/- 0.5% |
| 이름: | 보편적인 가죽 장력 강도 시험 기계, 전자 만능 시험기 | 용량: | 20 |
| 뇌졸중: | 650mm (클램프 제외) | 정확도 측정: | 가치 ±1%/ Value±0.5% |
| 작업: | 컴퓨터 창 작동 | ||

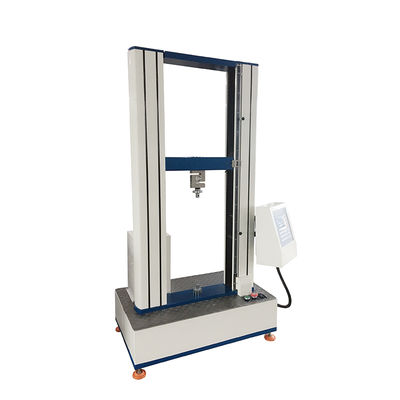

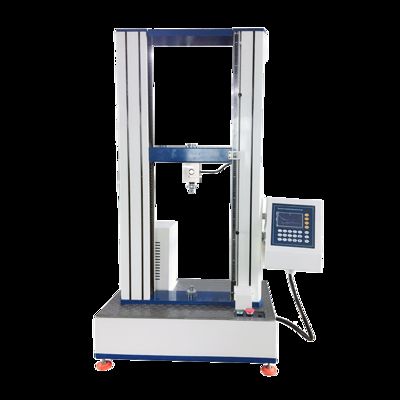

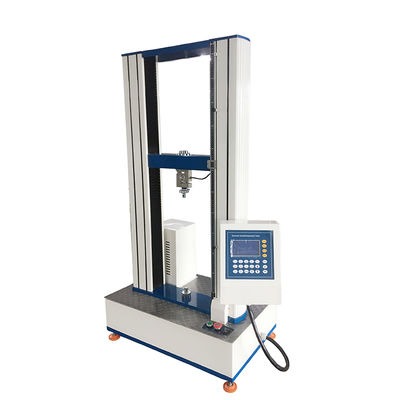

| 강조하다: | ASTM E8/A370/ISO 75001 Standard Electronic Universal Testing Machine,220V 50Hz Power Supply Electronic Universal Testing Machine,650mm Stroke Electronic Universal Testing Machine |
||
Domestic microcomputer-controlled electronic universal test machines originated in the early 1990s. By incorporating advanced foreign technology, our company has elevated our product technology to new heights.
This testing machine is widely used for mechanical performance tests including tension, compression, and bending shear of both metallic and non-metallic materials. With various available accessories, it can also perform mechanical tests on profiles and components. It has extensive applications in testing ropes, belts, wires, rubber, plastics, and other materials.
Ideal for quality control, research and education, aerospace, steel metallurgy, automotive, construction materials, and other testing fields.
Meets requirements of national standards GB/T228.1-2010 (Room Temperature Extension Test Method of Metal Materials) and GB/T7314-2005 (Metal Compression Test Method). Compatible with data processing for GB, ISO, ASTM, DIN and other international standards.
| Design Standards | GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ASTM E4, BS 1610, DIN 51221, ISO 7500, EN 10002, ISO 527, ASTM D628, ASTM D638, ASTM D412 |
|---|---|
| Model | KJ-1066C |
| Speed Range | 50-500mm/min |
| Motor | AV Servo Motor |
| Capacity | 2000KG |
| Resolution | 1/150,000 |
| Effective Testing Space | 400mm MAX |
| Accuracy | ±1% |
| Operation Method | Windows XP/Win7 operation, computer control |
| Standard Accessories | Computer, printer, system operation manual |
| Optional Accessories | Customized clamps, force sensors, additional printers, operation manuals |
| Weight | 400KG |
| Dimensions (W*D*H) | 80*50*150 cm |
| Power Requirements | 1PH, AC220V, 50/60Hz |
| Safety Features | Upper/lower stroke protection, force protection system, emergency stop device |
