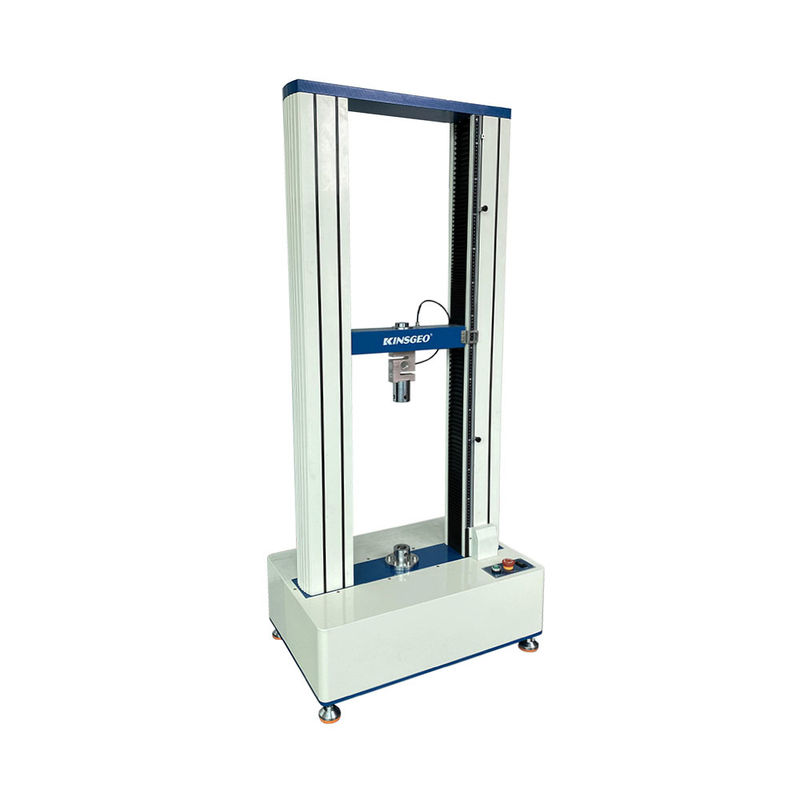

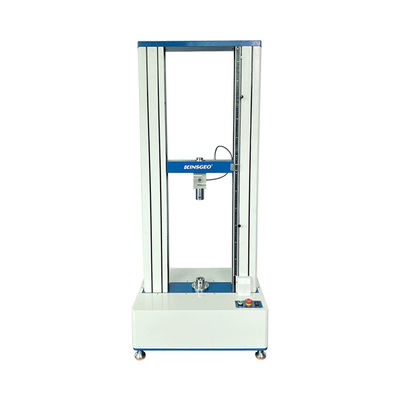

500kg Integrated Laboratory Cross-Welding Point Tensile Strength Testing Instrument

500kg Integrated Laboratory Cross-Welding Point Tensile Strength Testing Instrument
500kg Integrated Laboratory Cross-Welding Point Tensile Strength Testing Instrument 500kg Integrated Laboratory Cross-Welding Point Tensile Strength Testing Instrument

큰 이미지 :  500kg Integrated Laboratory Cross-Welding Point Tensile Strength Testing Instrument

제품 상세 정보:
Place of Origin: China
브랜드 이름: KINSGEO
인증: CE/ISO
Model Number: KJ-1066
결제 및 배송 조건:
Minimum Order Quantity: 1 set
가격: USD/4900/SET
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 30Sets/month
상세 제품 설명
Accuracy: ±0.5% Control System: Computer Control System
Data Acquisition: Computer Software Data Output: USB/RS232/RS485
Data Processing: Real-time Data Processing Display: Computer Display
Load Capacity: 50-1000kN Material: Steel
Power Supply: AC220V/50Hz Product Name: Universal Testing Machines
Safety Device: Overload Protection Speed Range: 0.1-500mm/min
Weight: 500kg Power: Electronic,Hydraulic,AC 220 V,AC220V 50Hz
Usage: Universal Testing Machine,Tensile Testing Machine,Rubber Tensile Tester Product name: Computer control double column universal testing machine,10T Computer Servo Universal Tensile Testing Machine Price

Universal Tensile Testing Machine Hydraulic Universal Tensile Strength Tester Equipment

Uses

This machine also known as a materials testing machine , is applicable to testing tensile, compression,bending,peel, shearing force, peeling force, modulus of elasticity,and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable,leather,package,tape,film,solar cell,etc.



Character

1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficient and structure rigidity.

2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be control in 0.5%.

3. That using the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

Accessories

1.Suitable Grips that meet customer sample need.

2.Software for test control,data acquisition and report.

3.English operation teach video.

4.Table computer is select.

5.Extend meter as customer request.

Software functions

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7.With many units of measurement, the metric system and british system can switch;

8.Have automatic calibration function;

9.Have user-defined test method function

10.Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;



Specification

Design Standards

GB16491-2008,HGT 3844-2008 QBT 11130-1991,GB 13022-1991,HGT 3849-2008,GB 6349-1986 GB/T 1040.2-2006 2411,ISO 4587,ISO/TS 11405,ASTM E4,BS 1610,DIN 51221,ISO 7500,EN 10002,ISO 527,ASTM D628,ASTM,D5459,ASTM D5458,ASTM D5748,ASTM D-882,ASTM D 1922,ASTM D638,ASTM D412.



Model KJ-1066A
Range of speed 0.5-1000mm/min
Motor Japan Panasonic Servo Motor
Capacity choice 5,10,20,50,100,200,500,1000,2000,5000KG optional
Resolution 1/250,000
Effective testing space 400mm MAX
Accuracy ±0.5%
Operation method Windows XP,Win7 operation,computer control
Accessories computer, printer, system operation manual
Optional accessories customized clamps by appointed, force sensors, , printer, and operation manual
Weight 400KG
Dimention (W×D×H)80×50×150CM
Power 1PH, AC220V, 50/60Hz
Stroke protection Upper and lower protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies

500kg Integrated Laboratory Cross-Welding Point Tensile Strength Testing Instrument 0

Guangdong KeJian Testing Instrument co., LTD., founded in 2003, is a professional research and development, production of precision testing instruments and provides a complete set of test solution technology enterprises, with professional factory equipment technology research and development team and excellent production, management level, continuously provide customers with satisfactory products and services, and gradually become the industry's leading supplier of instrumentation.
