500KG AC220V, 50/60Hz Lab Testing Machin Universal KJ-1065A Single Column Compression, Peeling, Beeding Testing Machine​

500KG AC220V, 50/60Hz Lab Testing Machin Universal KJ-1065A Single Column Compression, Peeling, Beeding Testing Machine​
500KG AC220V, 50/60Hz Lab Testing Machin Universal KJ-1065A Single Column Compression, Peeling, Beeding Testing Machine​ 500KG AC220V, 50/60Hz Lab Testing Machin Universal KJ-1065A Single Column Compression, Peeling, Beeding Testing Machine​ 500KG AC220V, 50/60Hz Lab Testing Machin Universal KJ-1065A Single Column Compression, Peeling, Beeding Testing Machine​ 500KG AC220V, 50/60Hz Lab Testing Machin Universal KJ-1065A Single Column Compression, Peeling, Beeding Testing Machine​ 500KG AC220V, 50/60Hz Lab Testing Machin Universal KJ-1065A Single Column Compression, Peeling, Beeding Testing Machine​ 500KG AC220V, 50/60Hz Lab Testing Machin Universal KJ-1065A Single Column Compression, Peeling, Beeding Testing Machine​

큰 이미지 :  500KG AC220V, 50/60Hz Lab Testing Machin Universal KJ-1065A Single Column Compression, Peeling, Beeding Testing Machine​

제품 상세 정보:
원래 장소: 중국
브랜드 이름: KEJIAN
인증: ISO,CE
모델 번호: KJ-1065A
결제 및 배송 조건:
최소 주문 수량: 1 단위
가격: Negotiate
포장 세부 사항: 그 때 직업적인 수출 강한 합판 상자로 끼워넣는 수지 섬유와 PP 영화로, 보호되는 각 세트
배달 시간: 주식에서는, 우리가 순서를 확인한 후에 3-7 작업 일
지불 조건: T/T, 서부 동맹, MoneyGram, L/C, T/T
공급 능력: 50 세트 / 월
상세 제품 설명
모터: Panasonic 자동 귀환 제어 장치 모터 مراقبة: 리카보네이트
속도 테스트: 0.5-1000mm/min 정확도: ±0.5%
수용 인원: 선택 1.2.5.10 .20.50.100.200.500kg 감지기: 미국 감지기
신청: 고무, 플라스틱, 나일론, 가죽 및 등 설계 표준: ASTM, GB/T16491 및 등
치수: (W×D×H) 58×58×125cm keywards: 유니버셜 테스팅 기계
강조하다:

500kg의 실험실 검사 기계

,

AC220V 만능시험기기

,

500kg 보편적 시험 기계

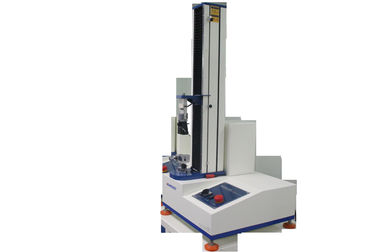

500KG High Precision Universal KJ-1065A Single Column Compression Testing Machine​




Usage



This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.



1.Product Description



A. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

B. Having steady performance, high accuracy, powerful software function and easy operation.

C. Using the USA high-precision load cell.Machine accuracy is ±0.5%.



Range of speed 0.5-1000mm/min
Motor Japan Panasonic Servo Motor
Capacity choice 1.2.5.10.20.50.100.200.500kg optional
Resolution 1/250,000
Effective testing space 120mm max
Accuracy ±0.5%
Operation method Windows operation
Accessories computer, printer, system operation manual
Optional accessories stretcher, air clamp
Weight 80KG
Dimension (W×D×H) 58×58×125cm
Power 1PH, AC220V, 50/60Hz
Stroke protection Upper and lower protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies



2.Product Design Standard



ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632.



500KG AC220V, 50/60Hz Lab Testing Machin Universal KJ-1065A Single Column Compression, Peeling, Beeding Testing Machine​ 0

3.Company Information


Our factory Established in 2003, Dongguan Kejian Instrument Co., Ltd is a high-tech enterprise
which professionally research, develop and produce precise testing instruments and provide a full set of testing solution.

500KG AC220V, 50/60Hz Lab Testing Machin Universal KJ-1065A Single Column Compression, Peeling, Beeding Testing Machine​ 1



4.Attend the fair



We attend international exhibitions three to five times every year, and domestic exhibitions five to ten times every year, We hope to have the opportunity to invite you to visit our booth in future.
500KG AC220V, 50/60Hz Lab Testing Machin Universal KJ-1065A Single Column Compression, Peeling, Beeding Testing Machine​ 2

5.Certifications and letters patent

500KG AC220V, 50/60Hz Lab Testing Machin Universal KJ-1065A Single Column Compression, Peeling, Beeding Testing Machine​ 3


6.Packaging & Delivery

Packaging Details:Disposable Plastic Apron PE Film Making Machine uses international standard package, big wooden cases
Delivery Time: 10-20 days after received deposit
500KG AC220V, 50/60Hz Lab Testing Machin Universal KJ-1065A Single Column Compression, Peeling, Beeding Testing Machine​ 4



7.Our services


1). Warranty time: All machines are guaranteed for one year free that we provide spare components except the wrong operation or damaged by people on purpose.
2).Teaching services: Our engineers will teach your staff to operate the machine during the period of installation and commissioning, and they will not leave until your staff can operate it properly and normally when it necessary.
3).Certificate services: Complying with our clients' request, we can provide related certificates to clients freely
4).Maintenance services: If you have any questions or any malfunction happened,we will reply you within 48 hours .


8.Contact us
If you want get more details ,or can not find out what are you looking for,pls feel free to contact me,i will do my best for you.
